Liquid Energy Shot Bottling Line

Liquid energy shot bottling line

Small liquid bottle filling line

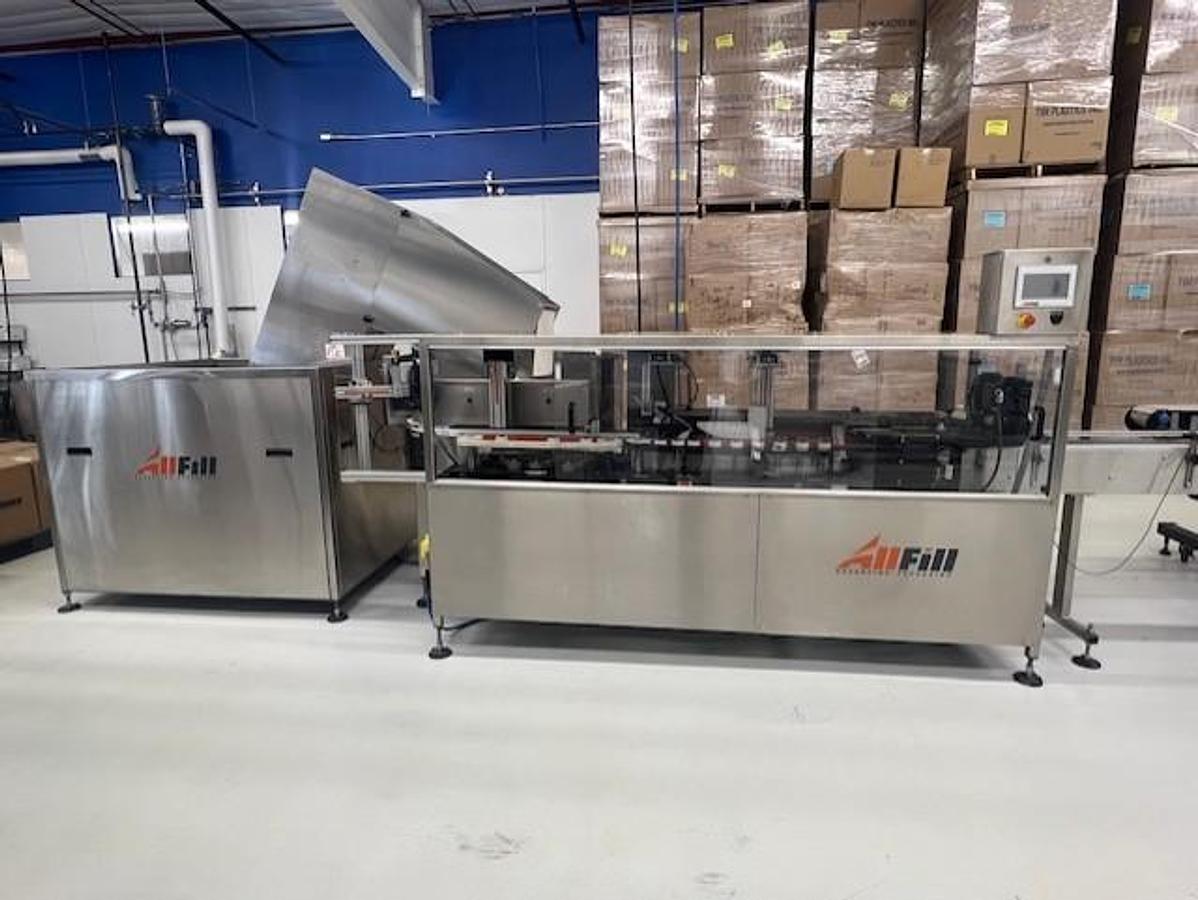

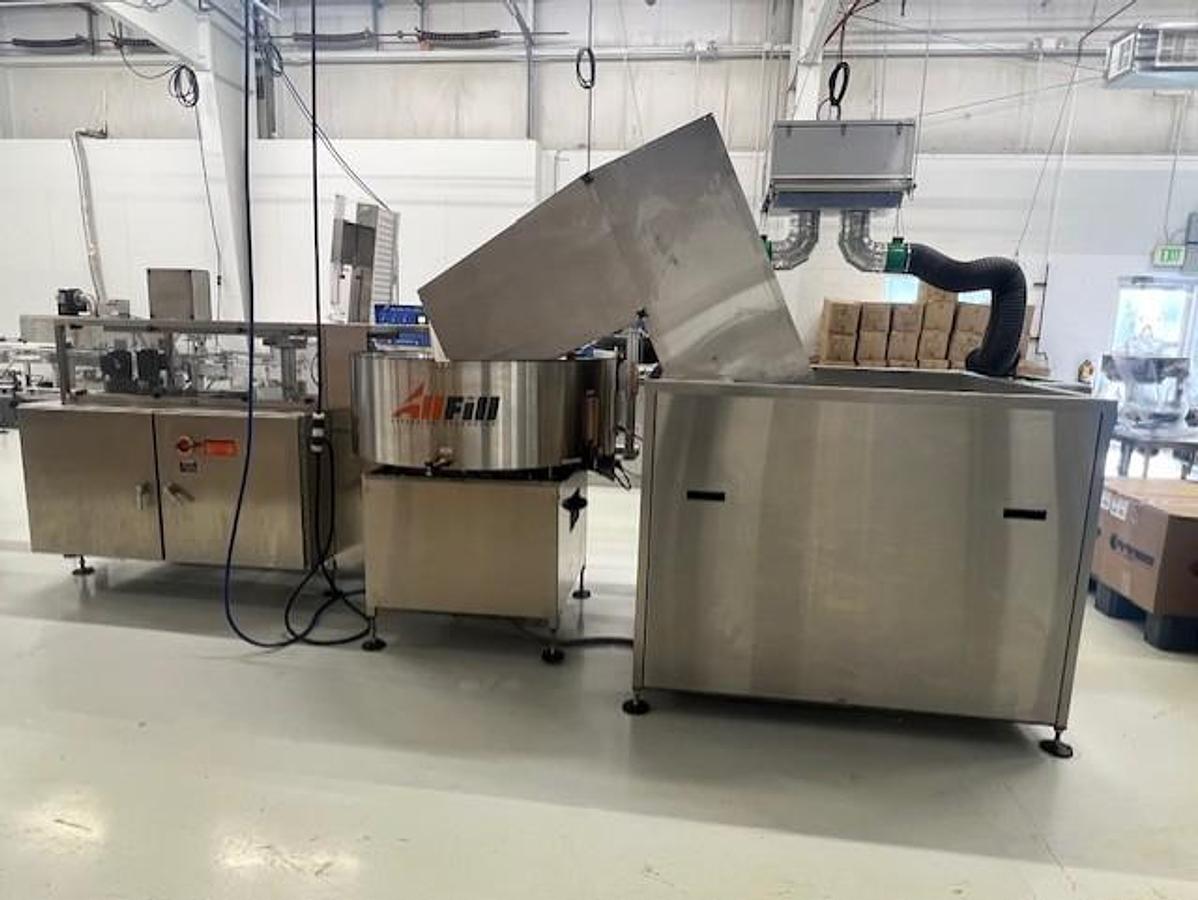

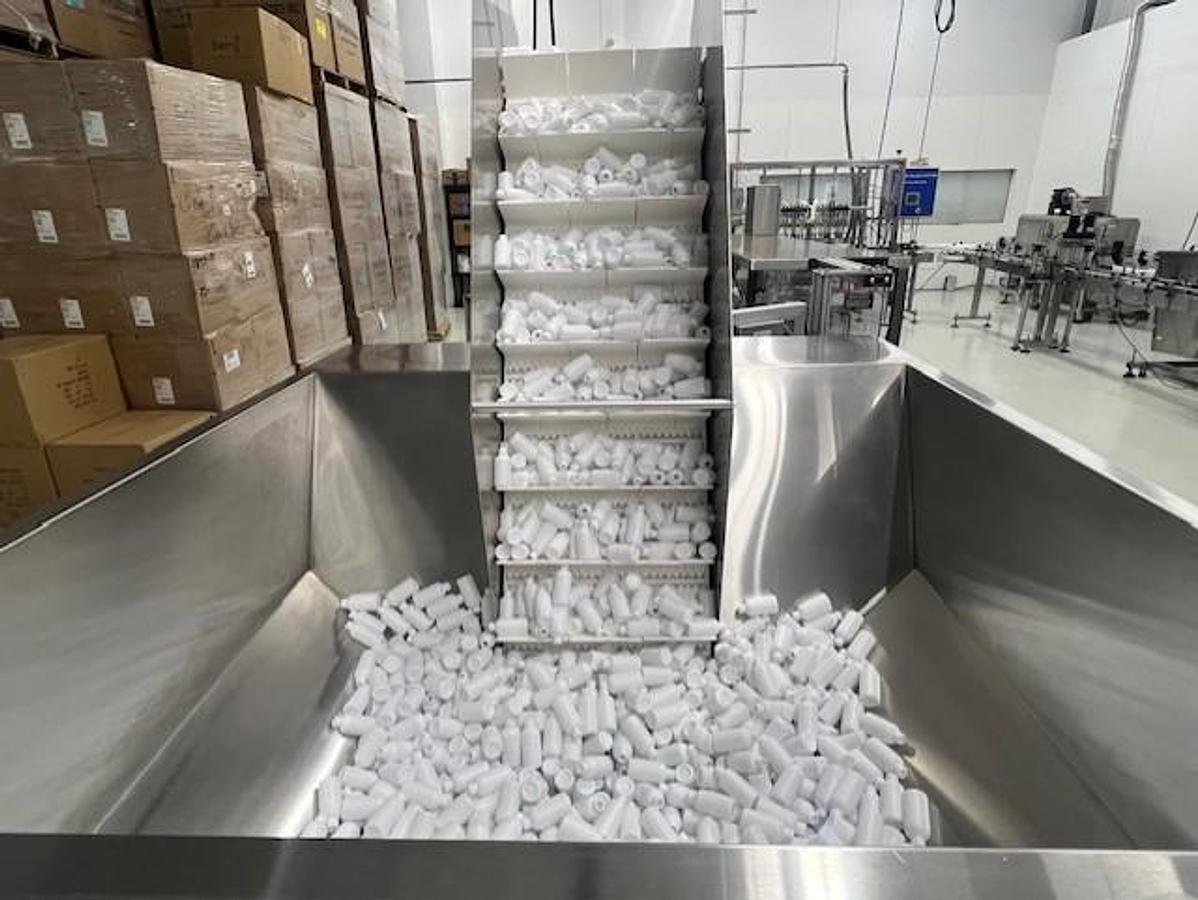

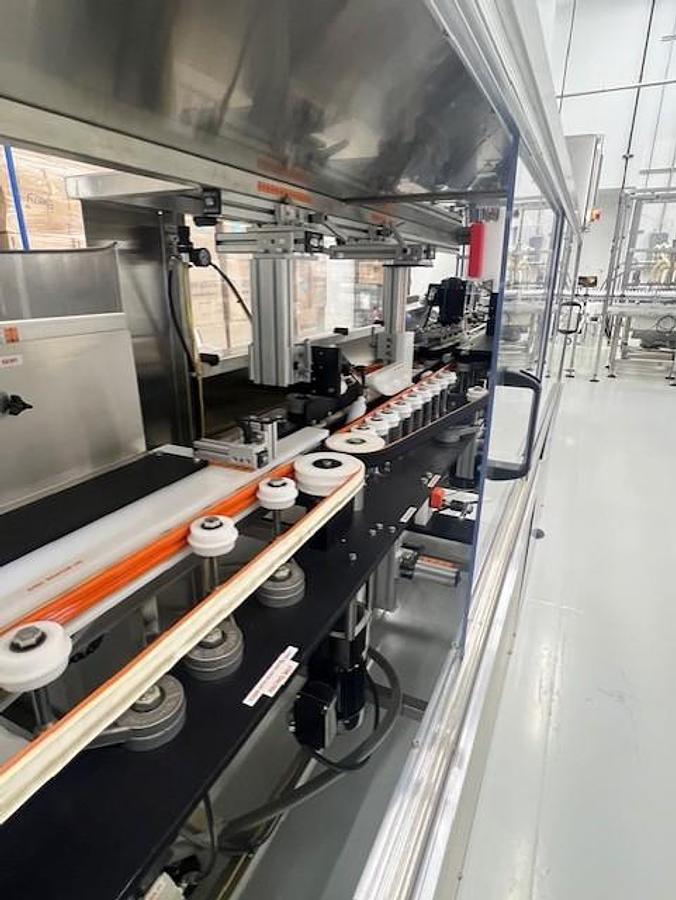

1.    ALL-FILL Bottle unscrambler year 2021 model S-4/MP8 Voltz 220 90 psi

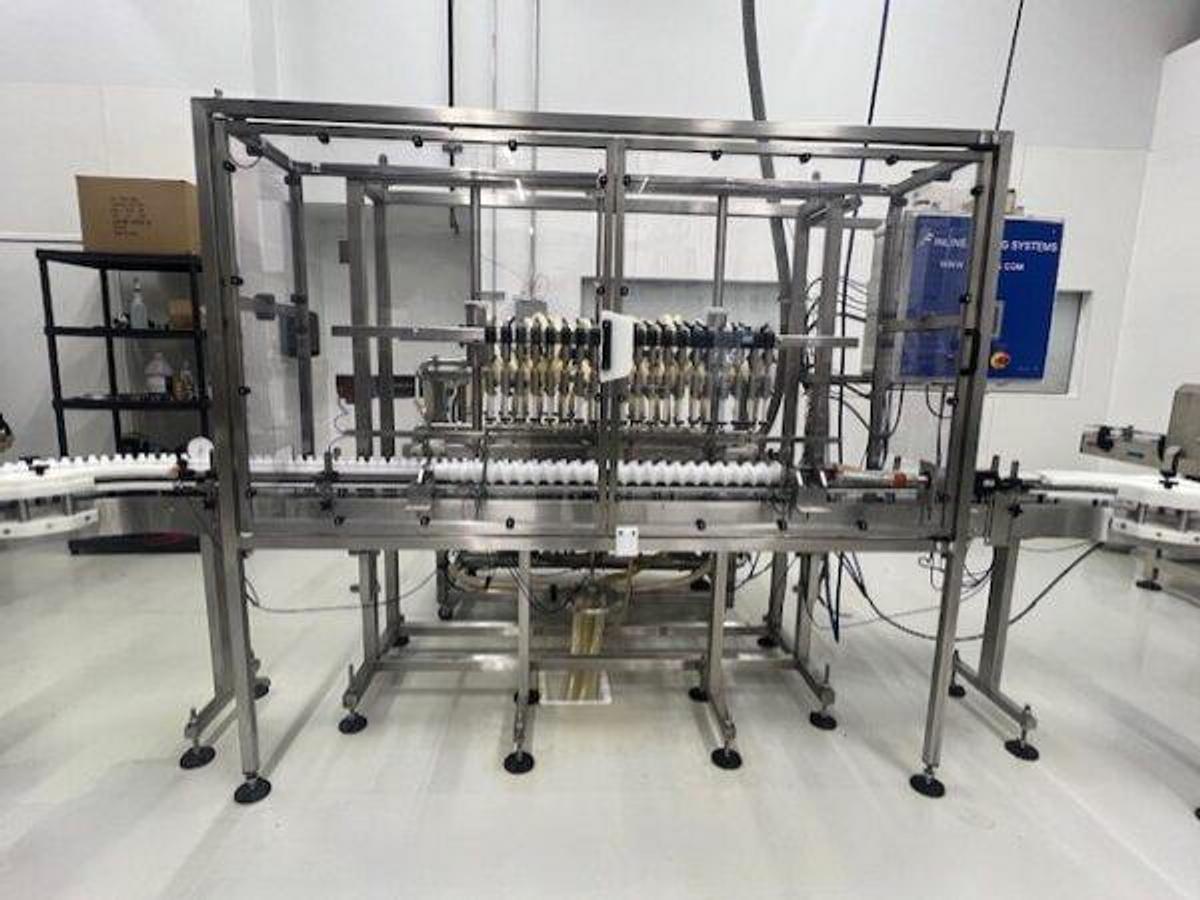

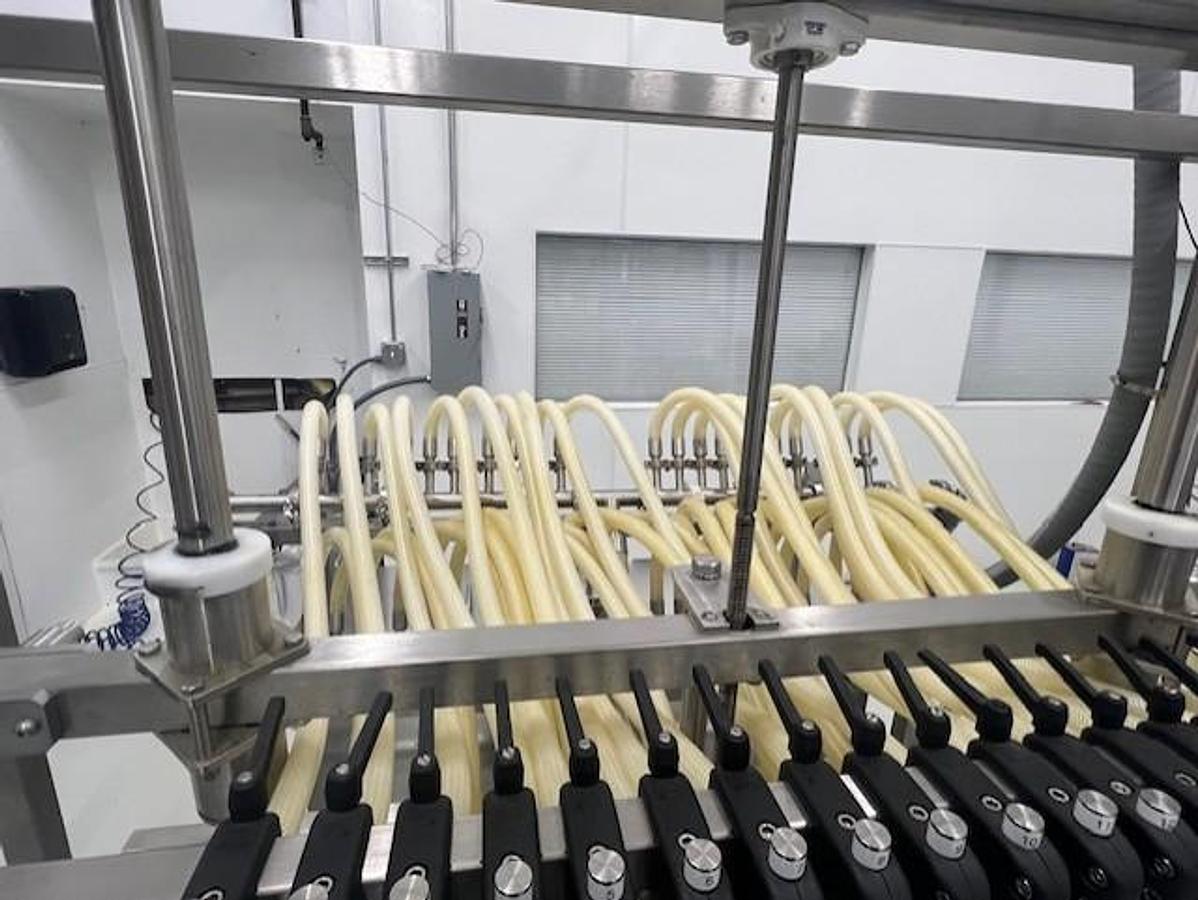

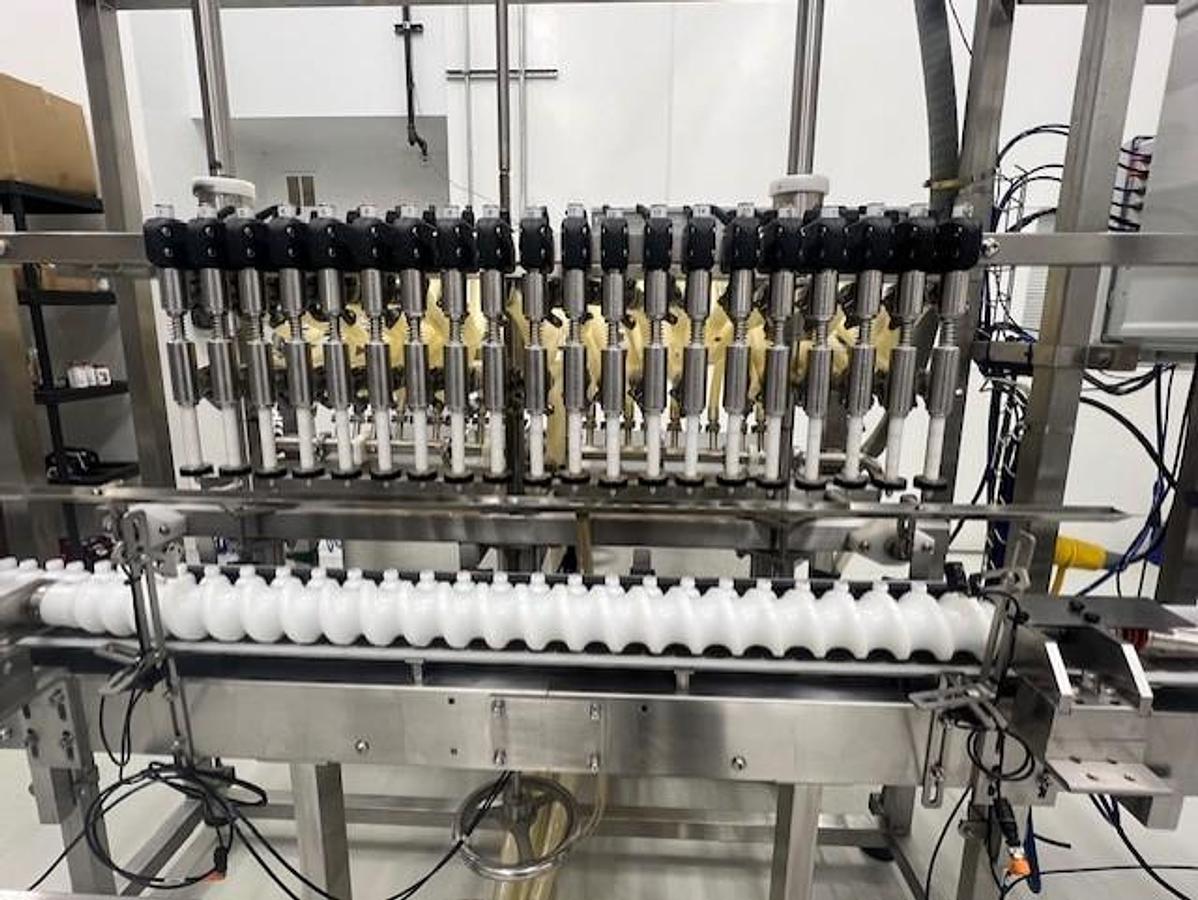

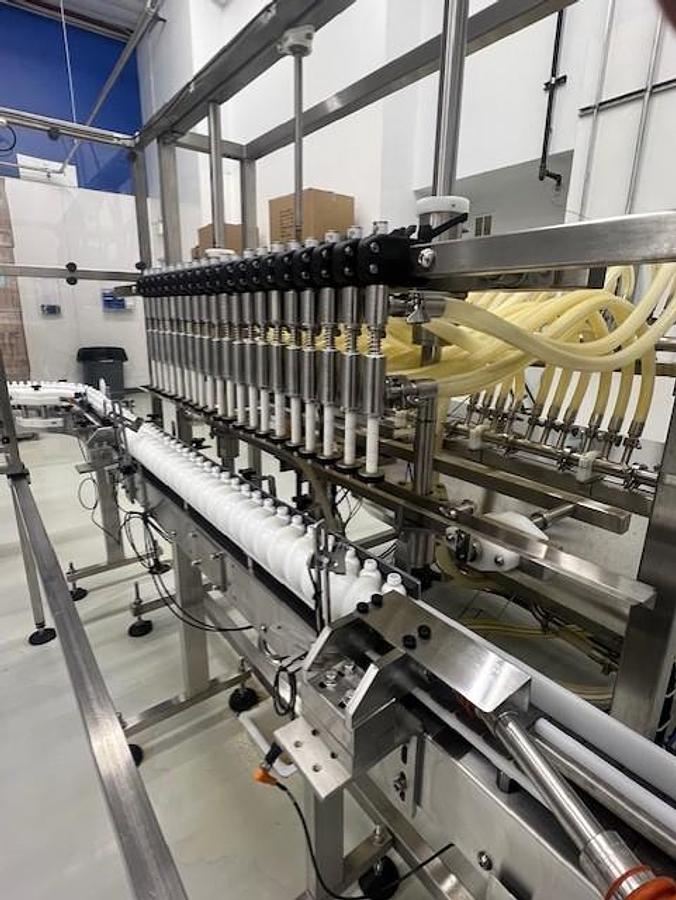

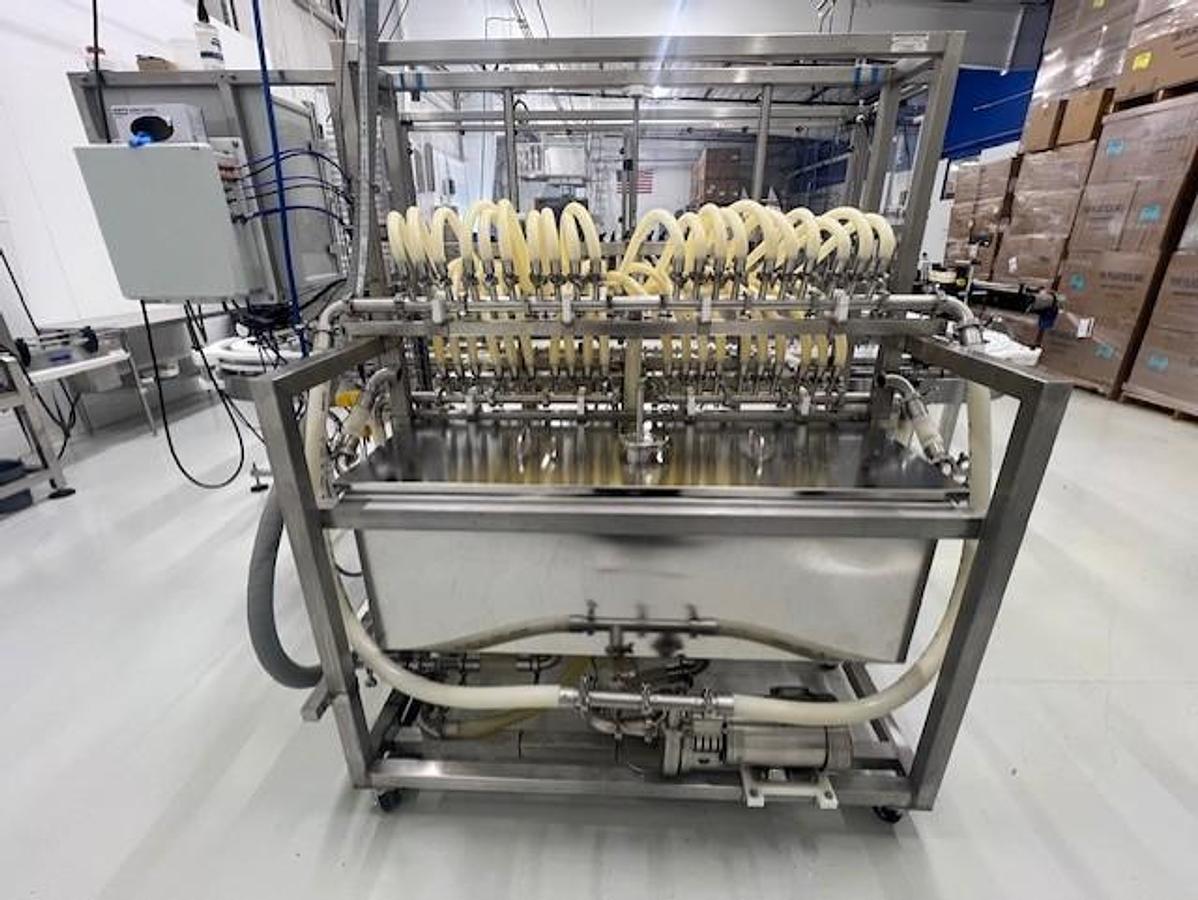

2.    20 Head piston filler INLINE FILLING SYSTEMS

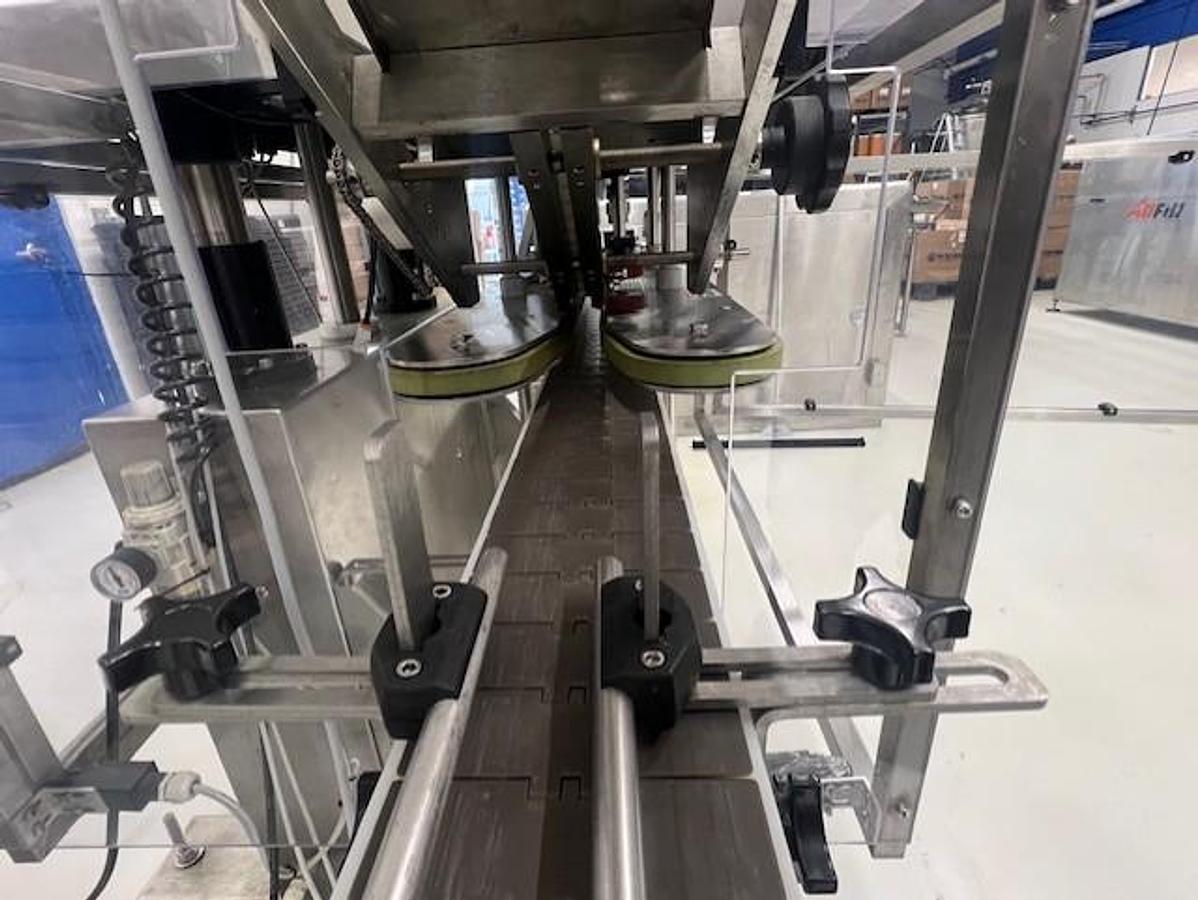

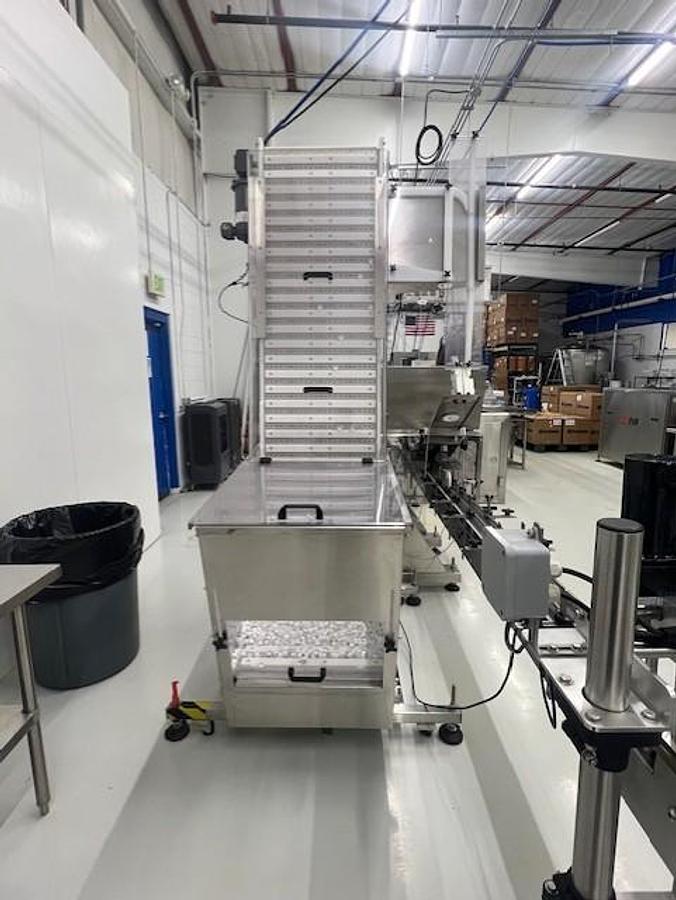

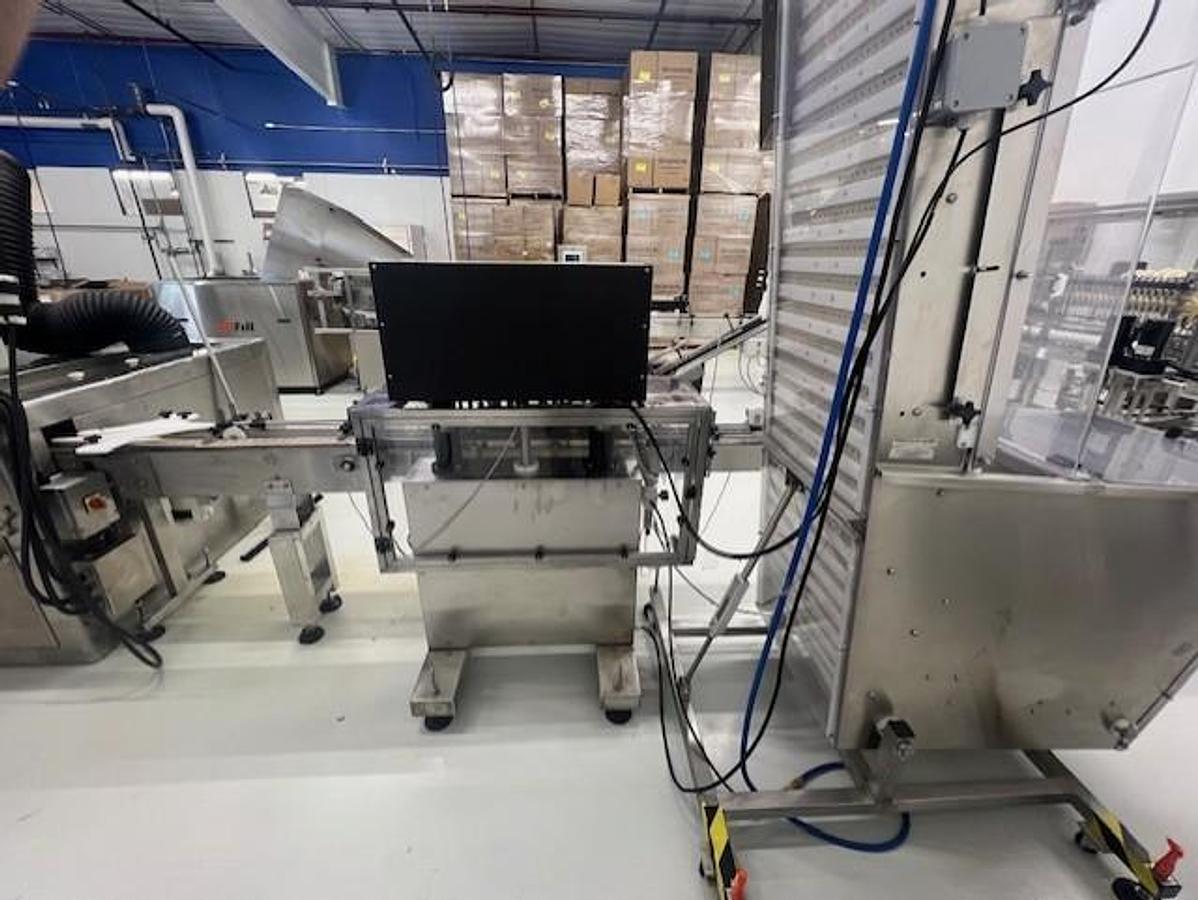

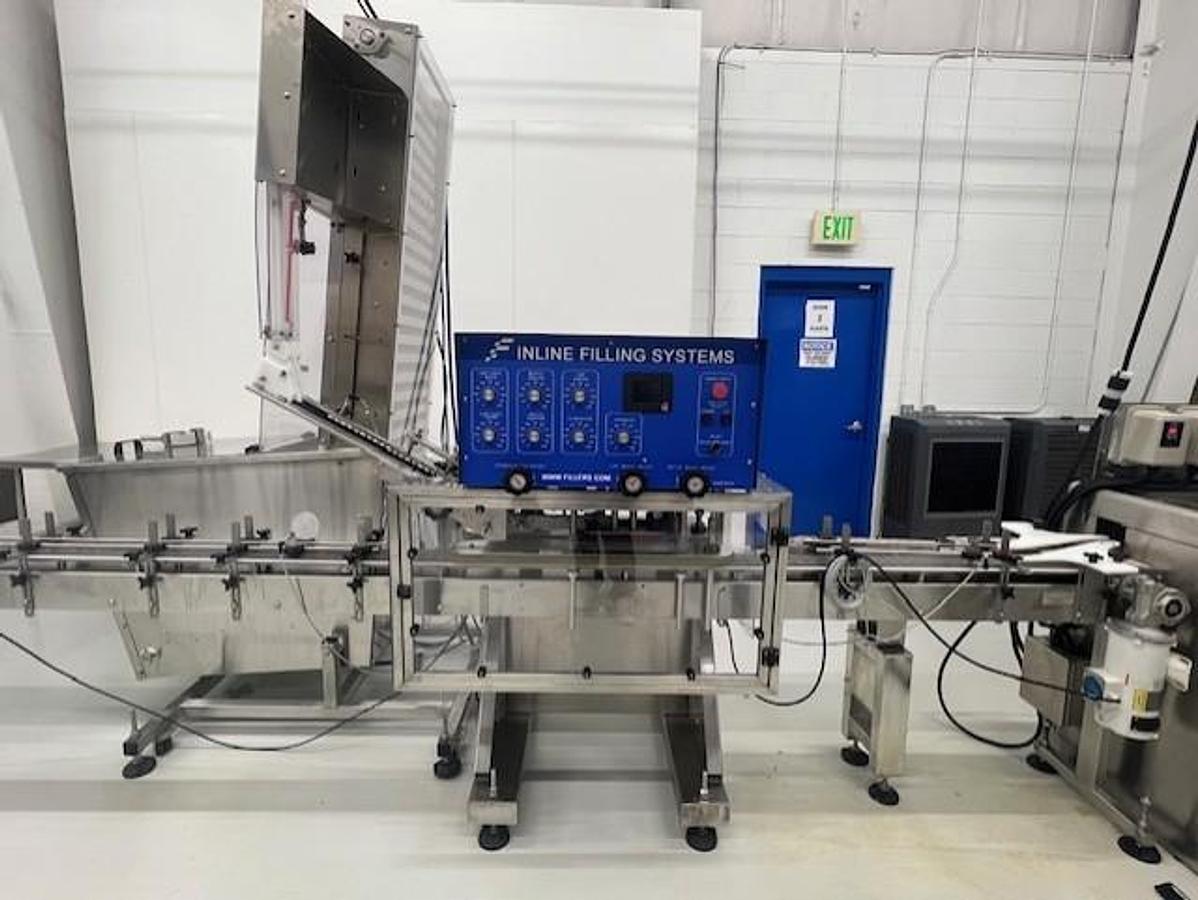

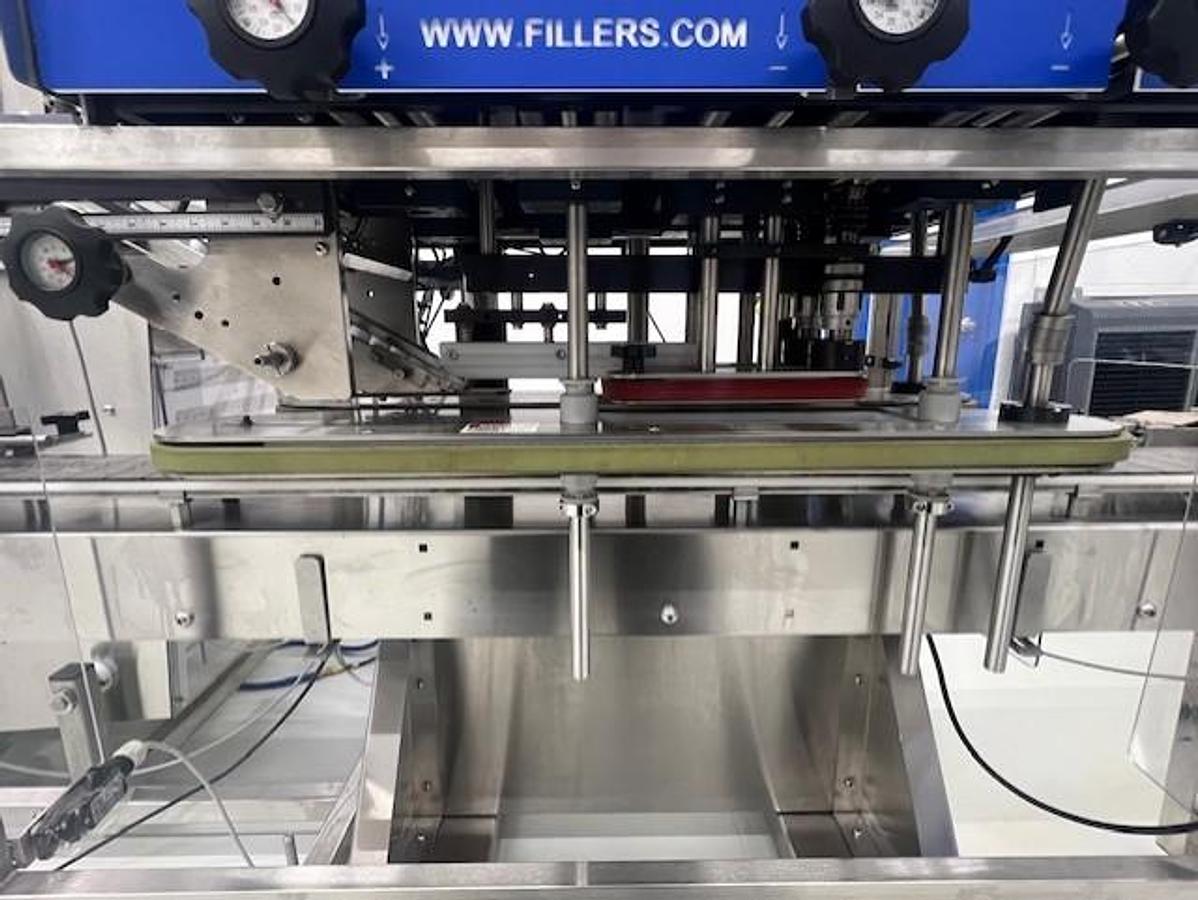

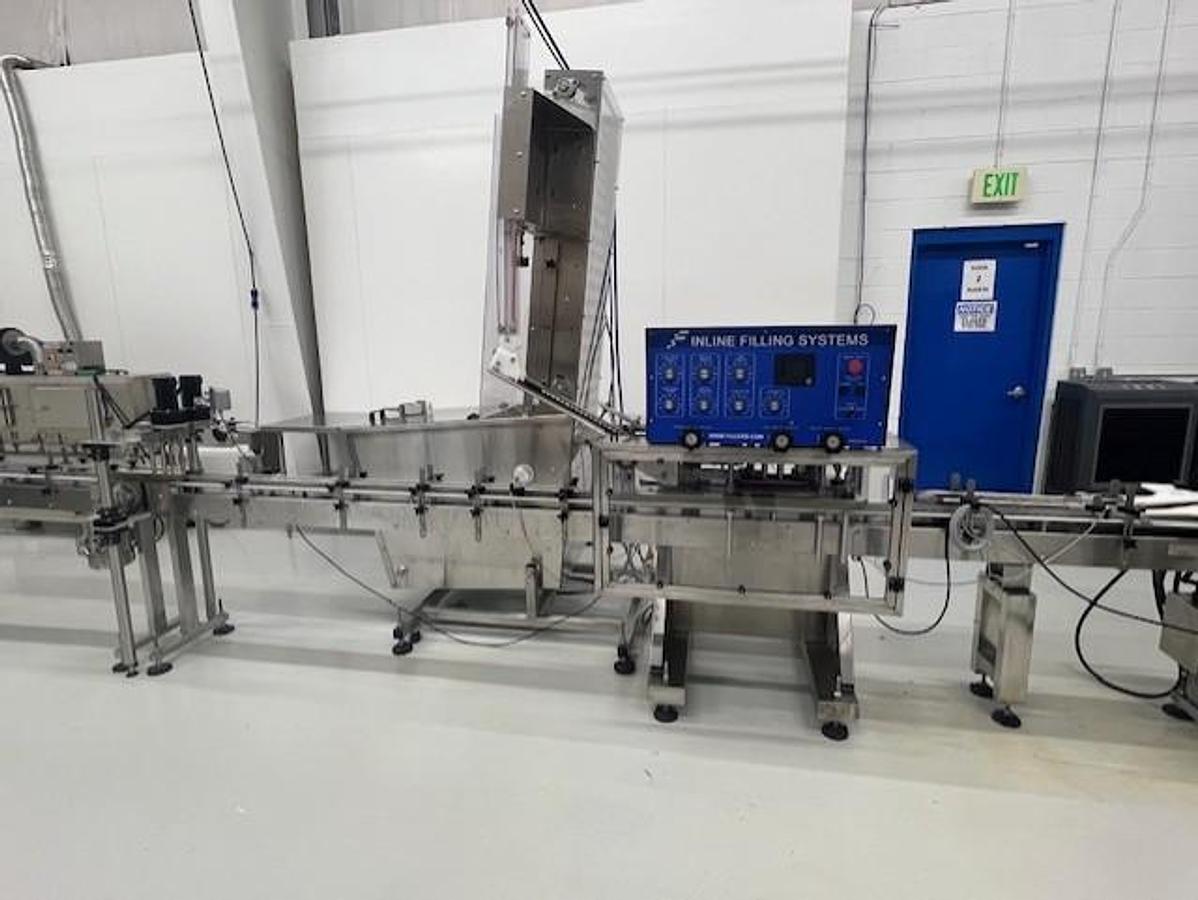

3.    Capper with elevator INLINE FILLING SYSTEM

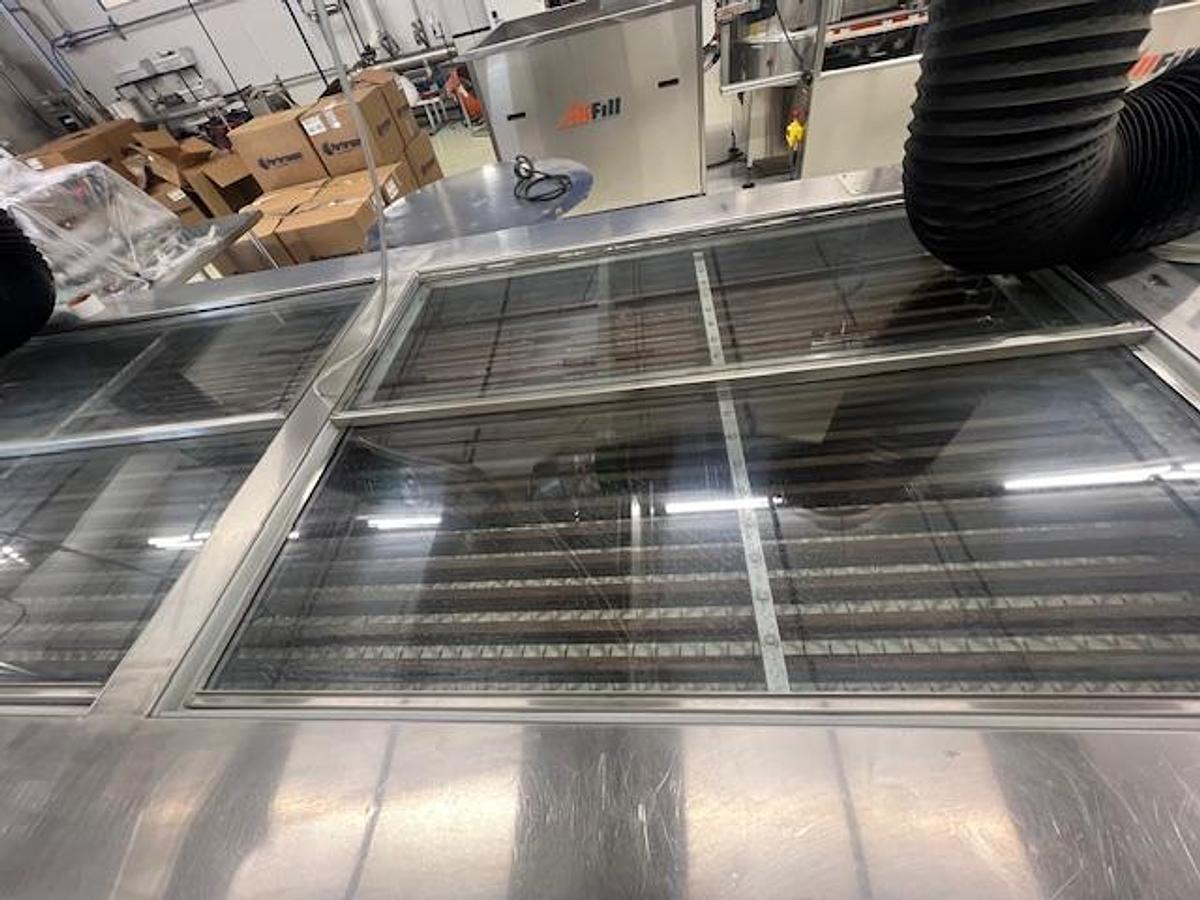

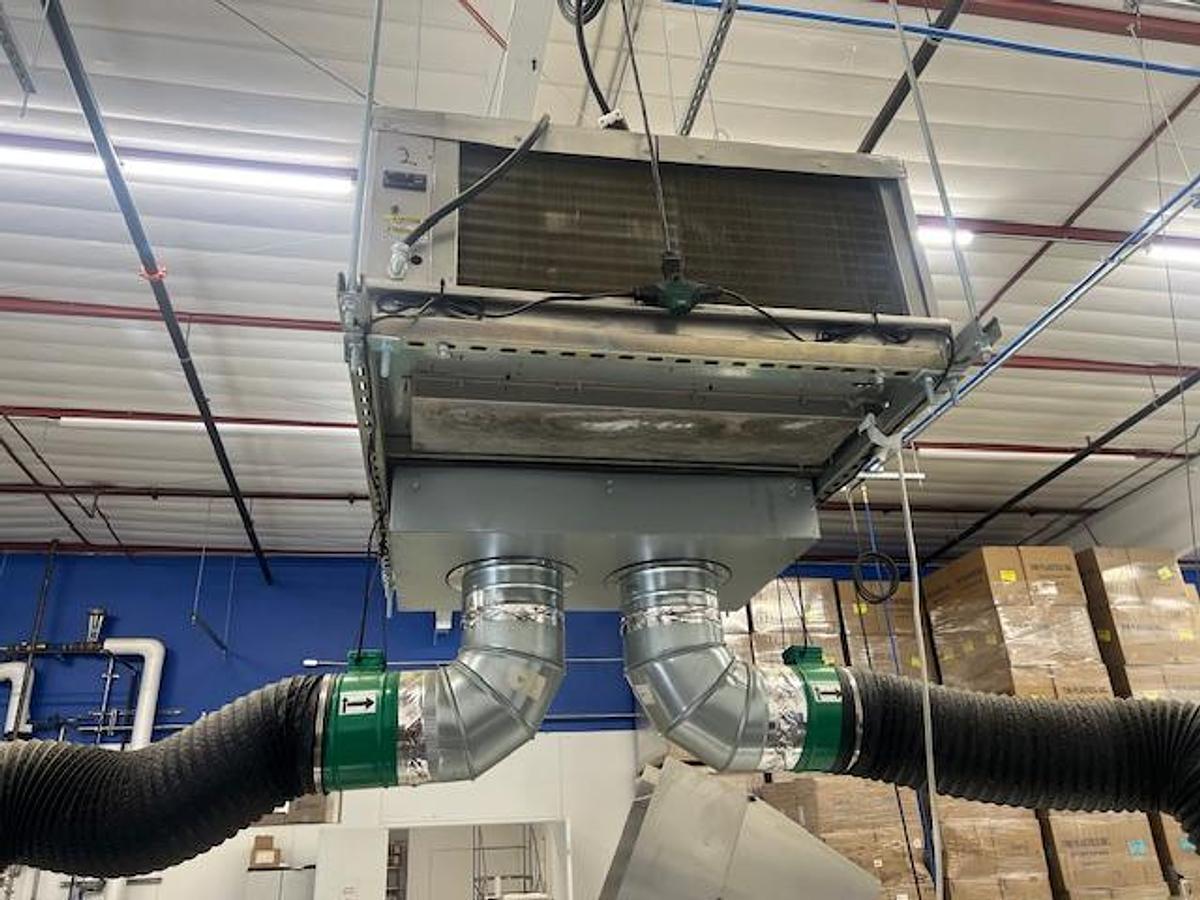

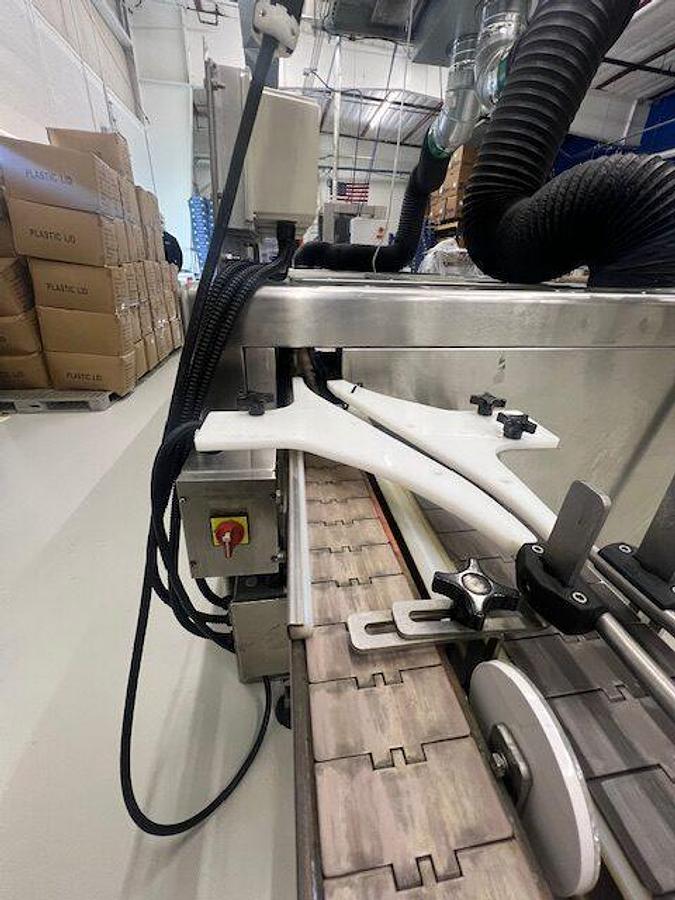

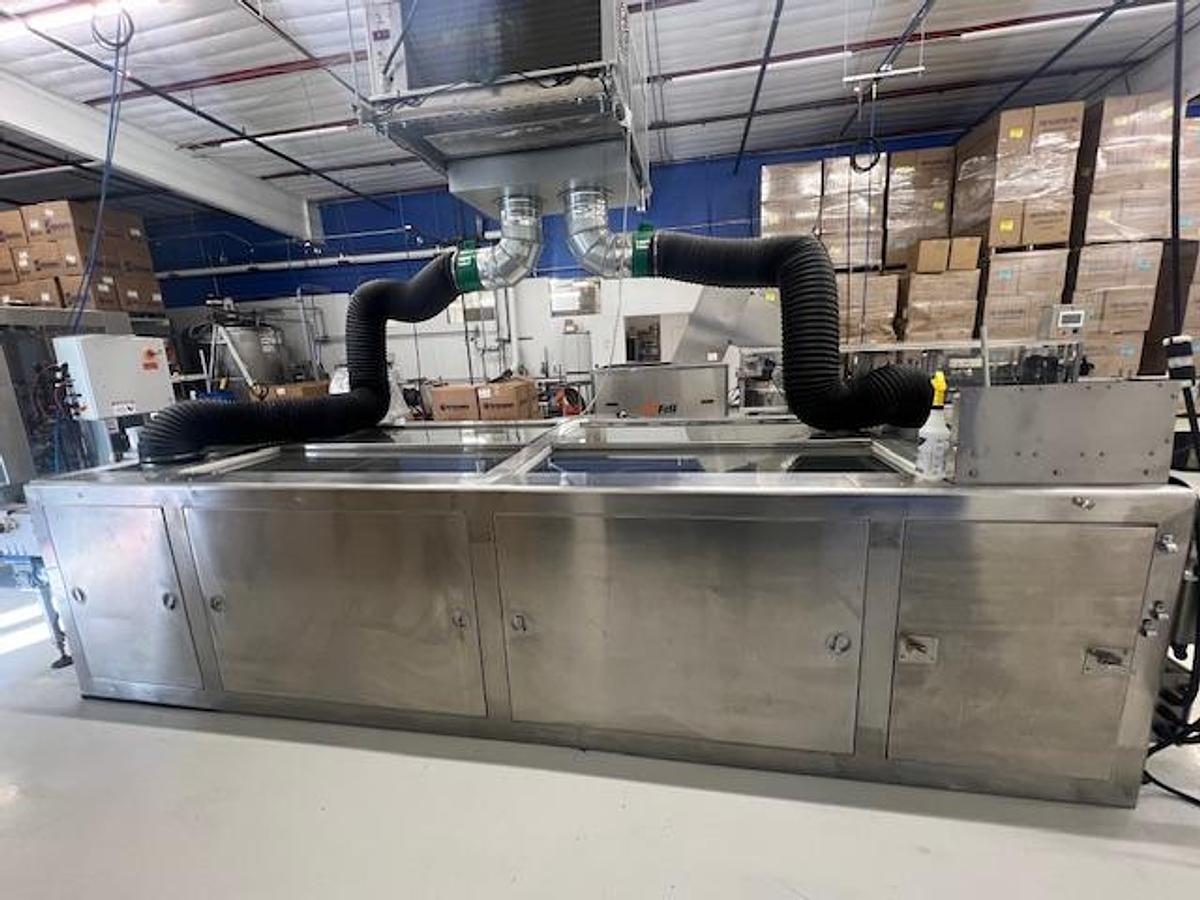

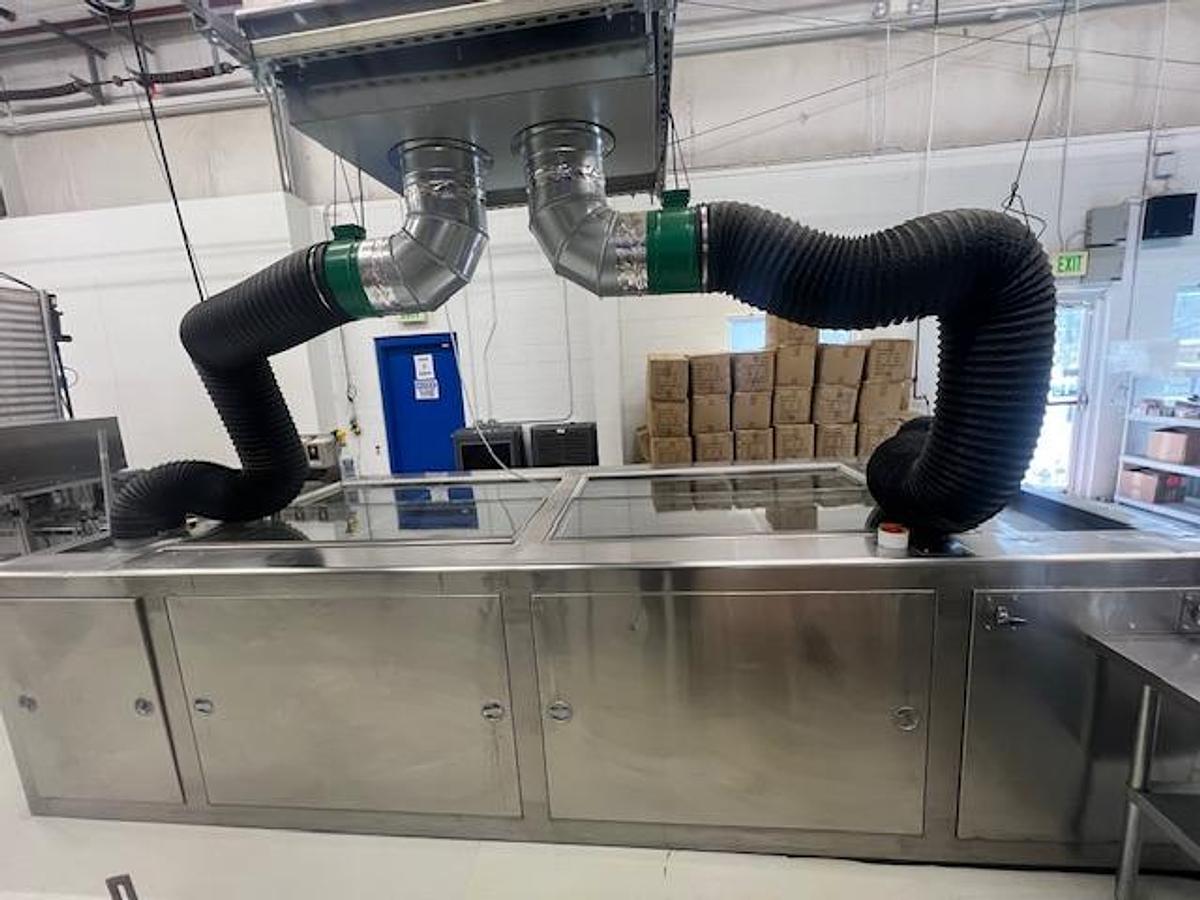

4.    Cooling Tunnel

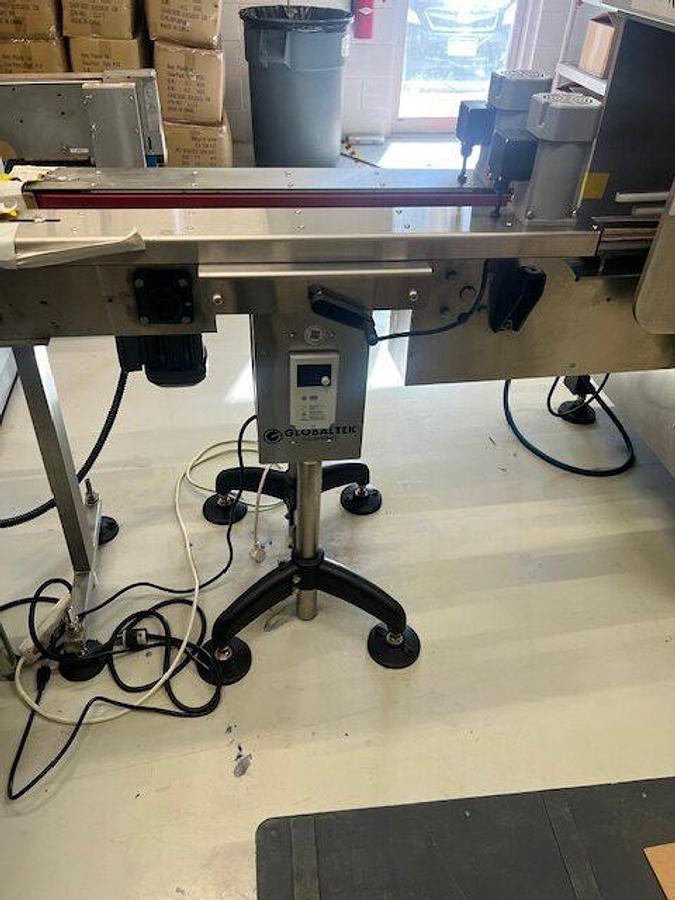

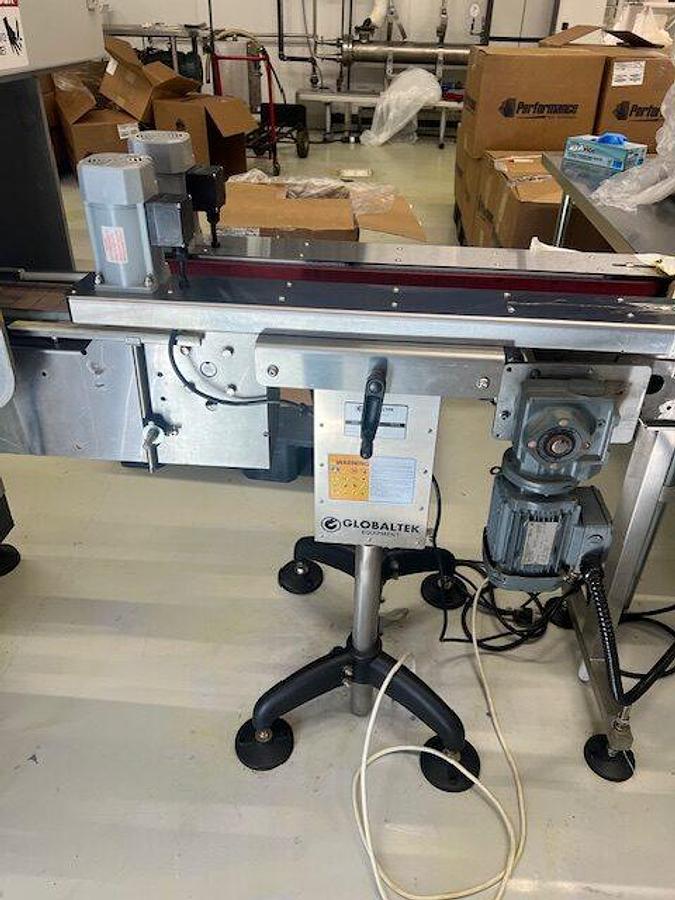

5.    Bottomless conveyor GLOBALTEK  Model TRA-37S

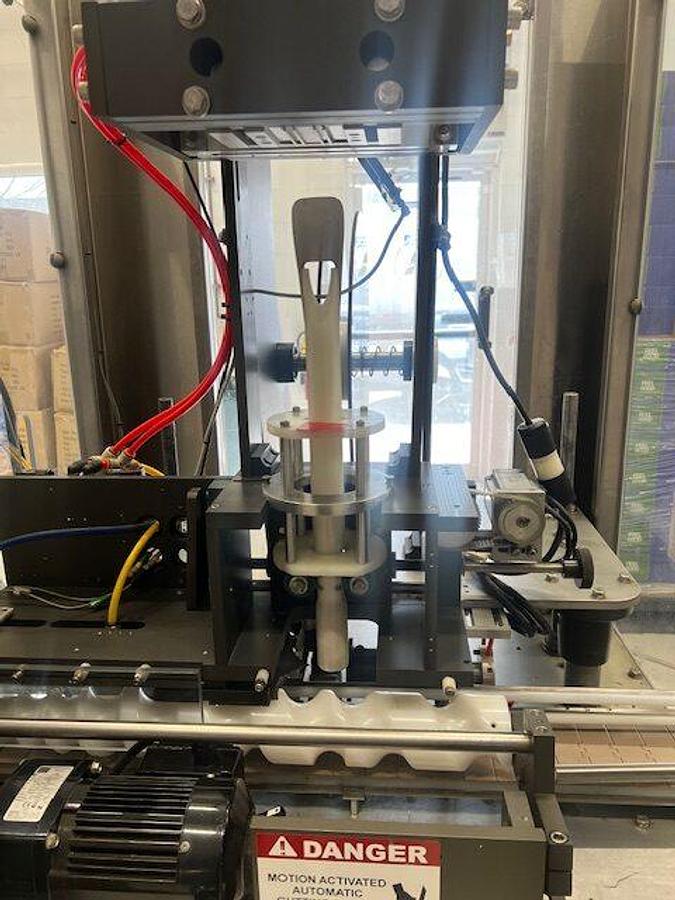

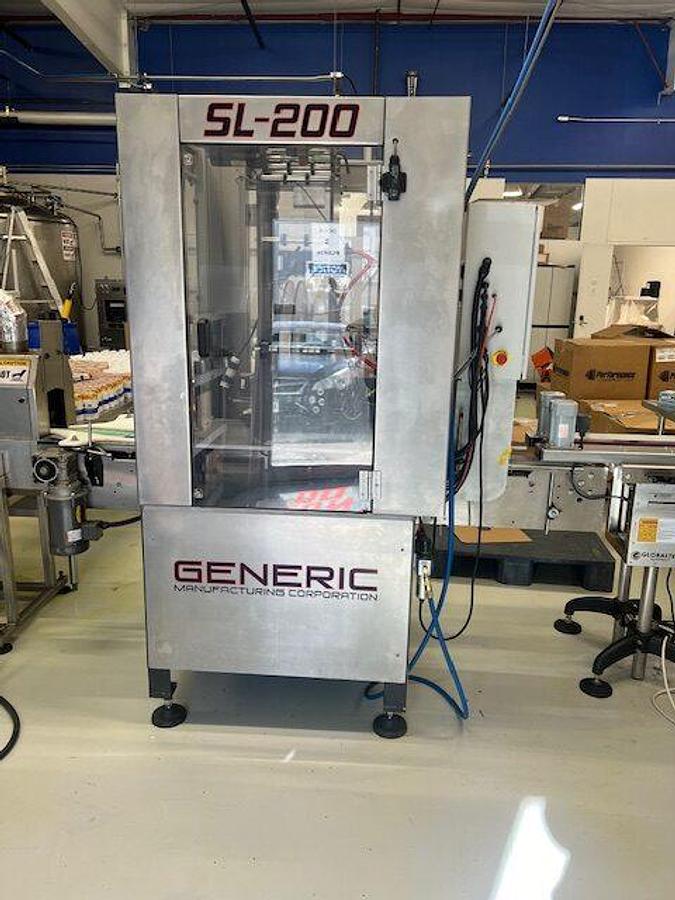

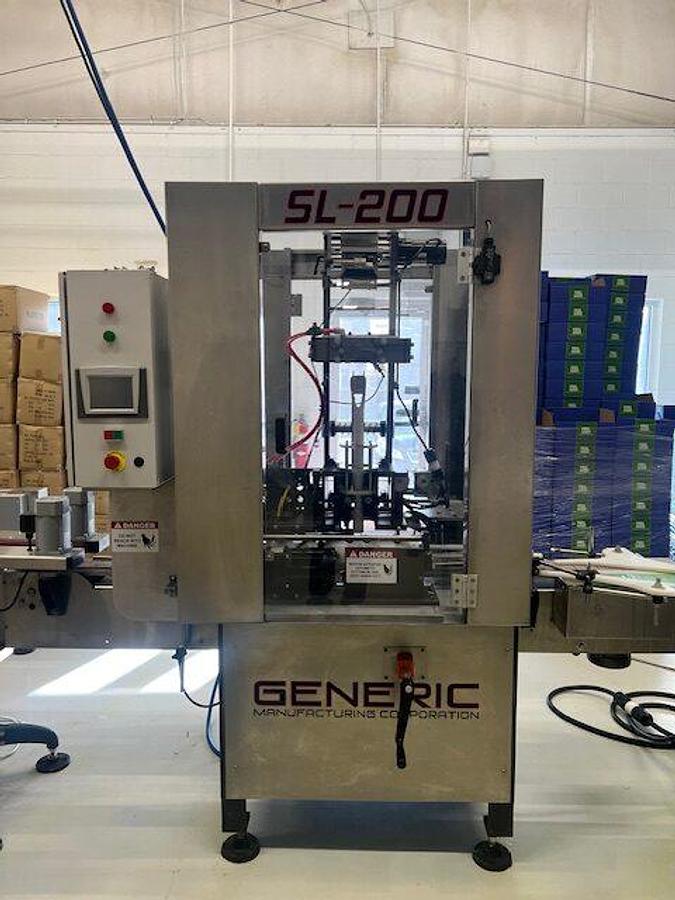

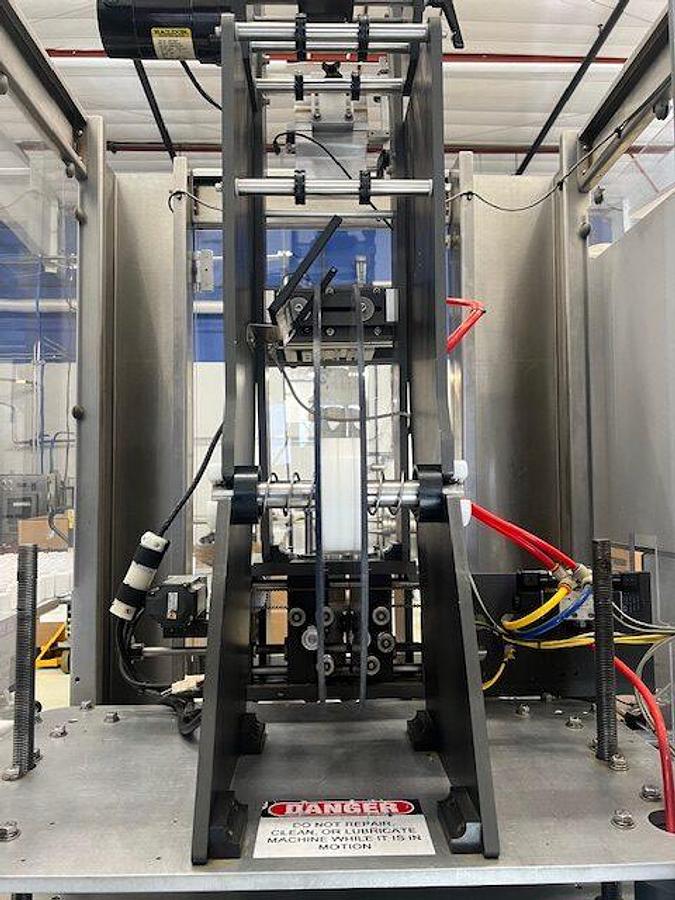

6.    Full body sleeving machine Neck bander Make GENERIC Model SL200

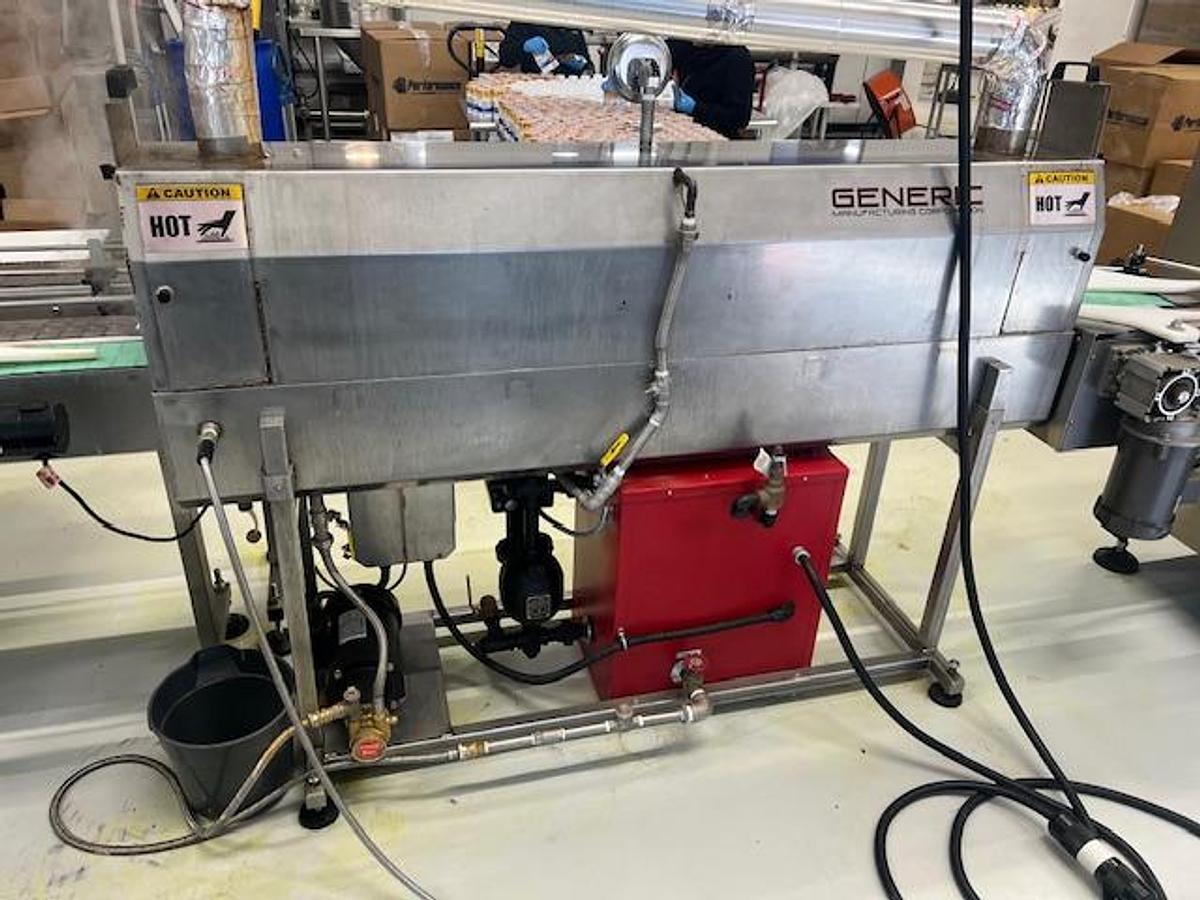

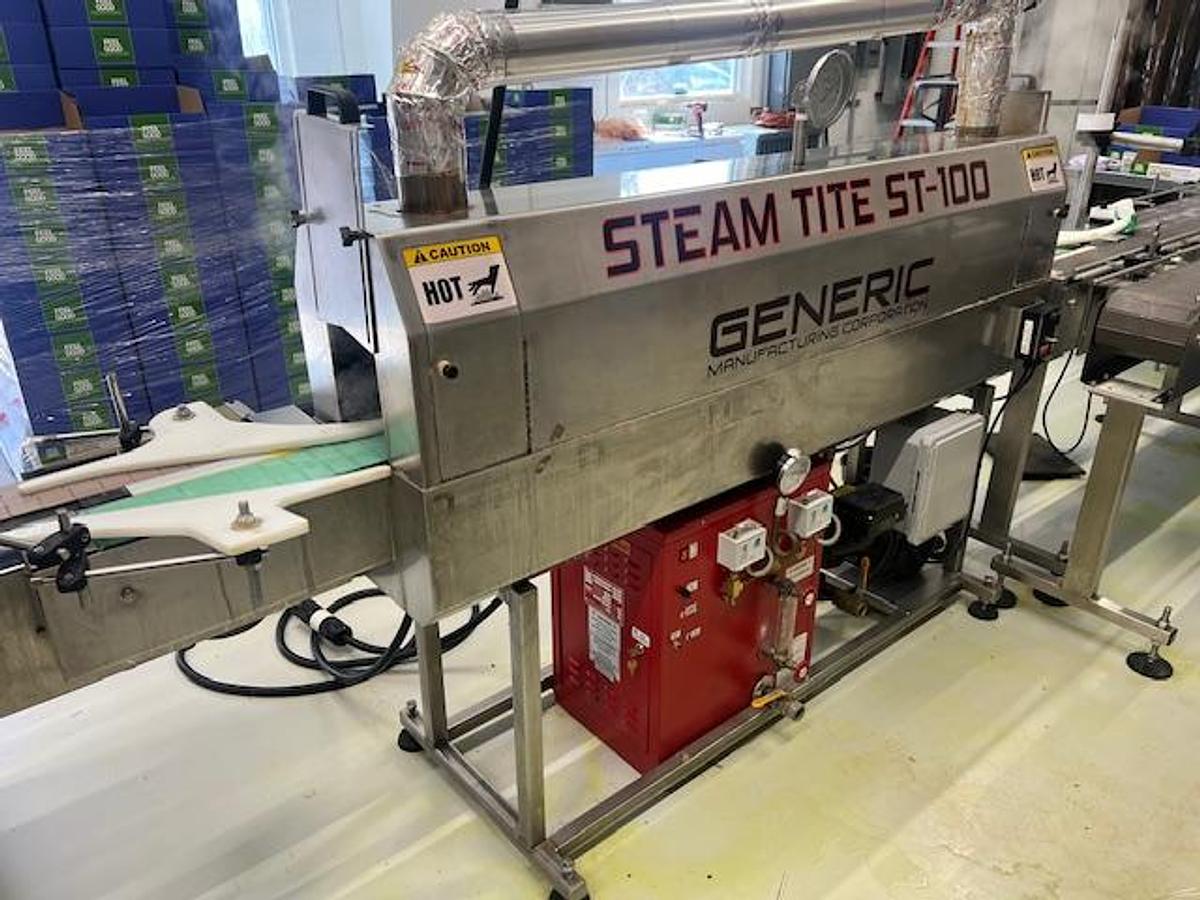

7.    Steam tunnel Generic TITE ST-100

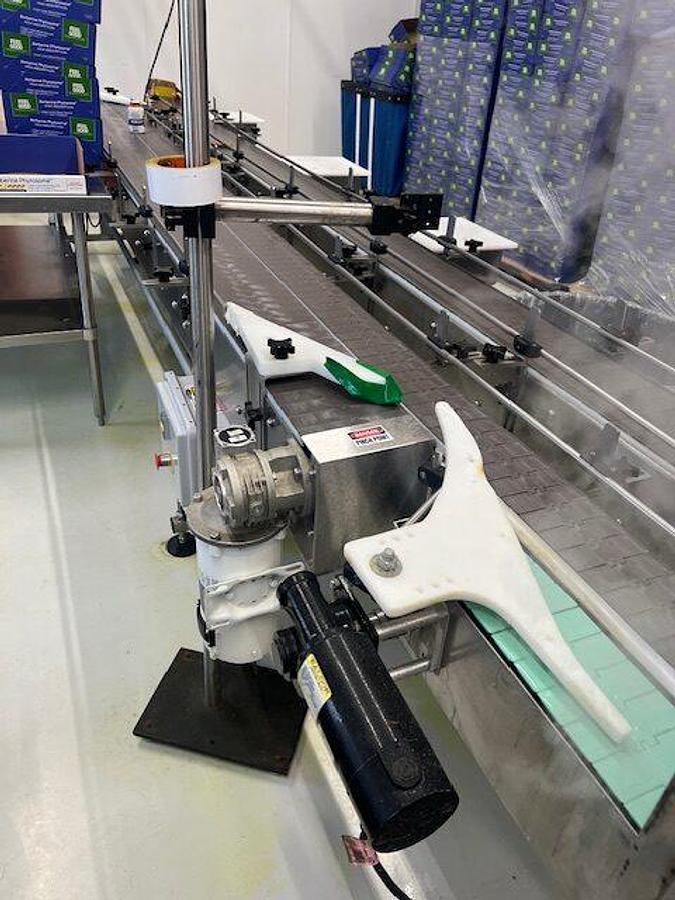

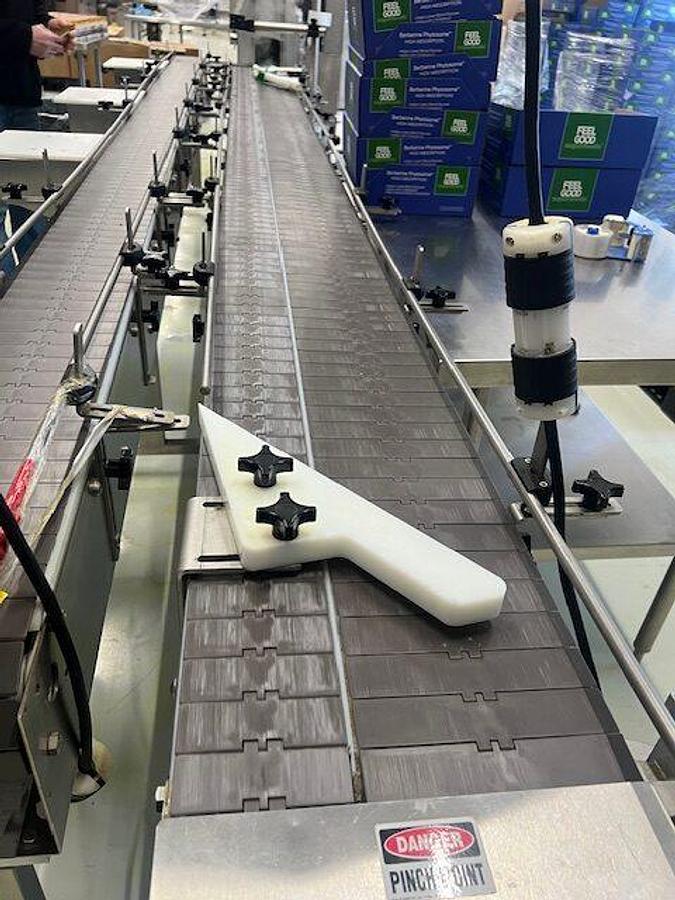

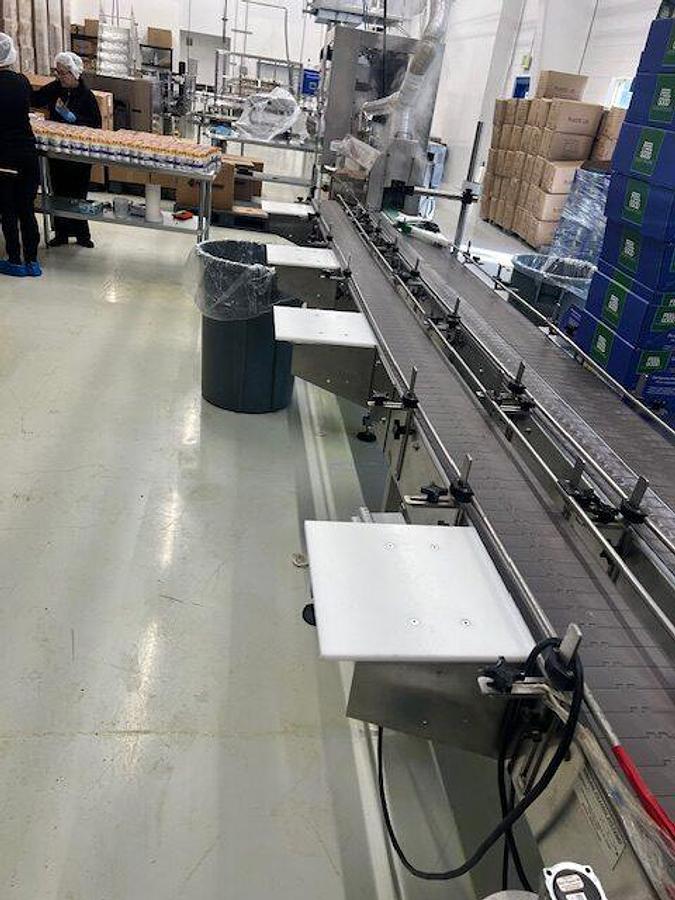

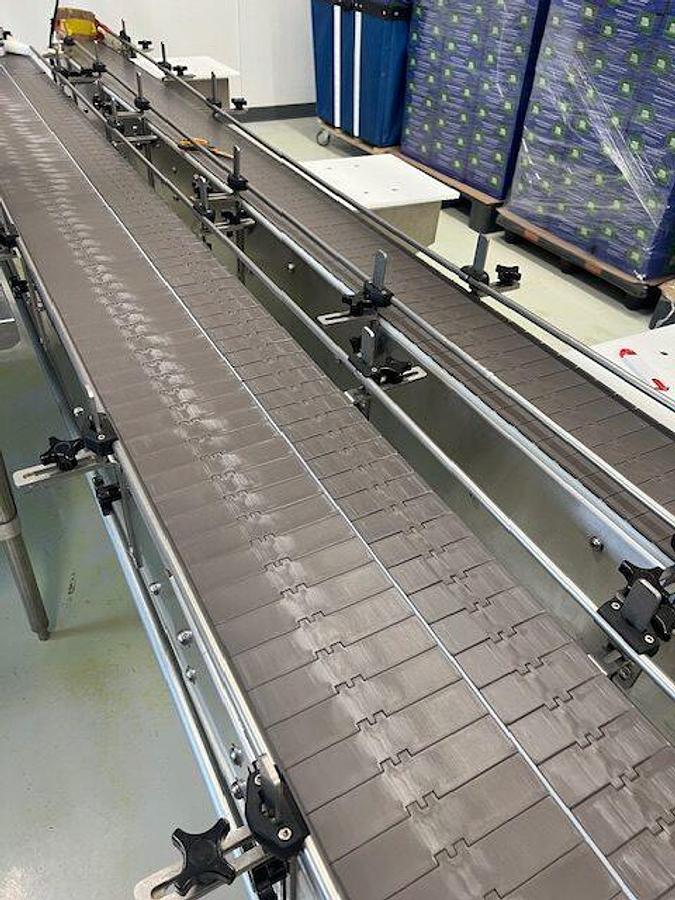

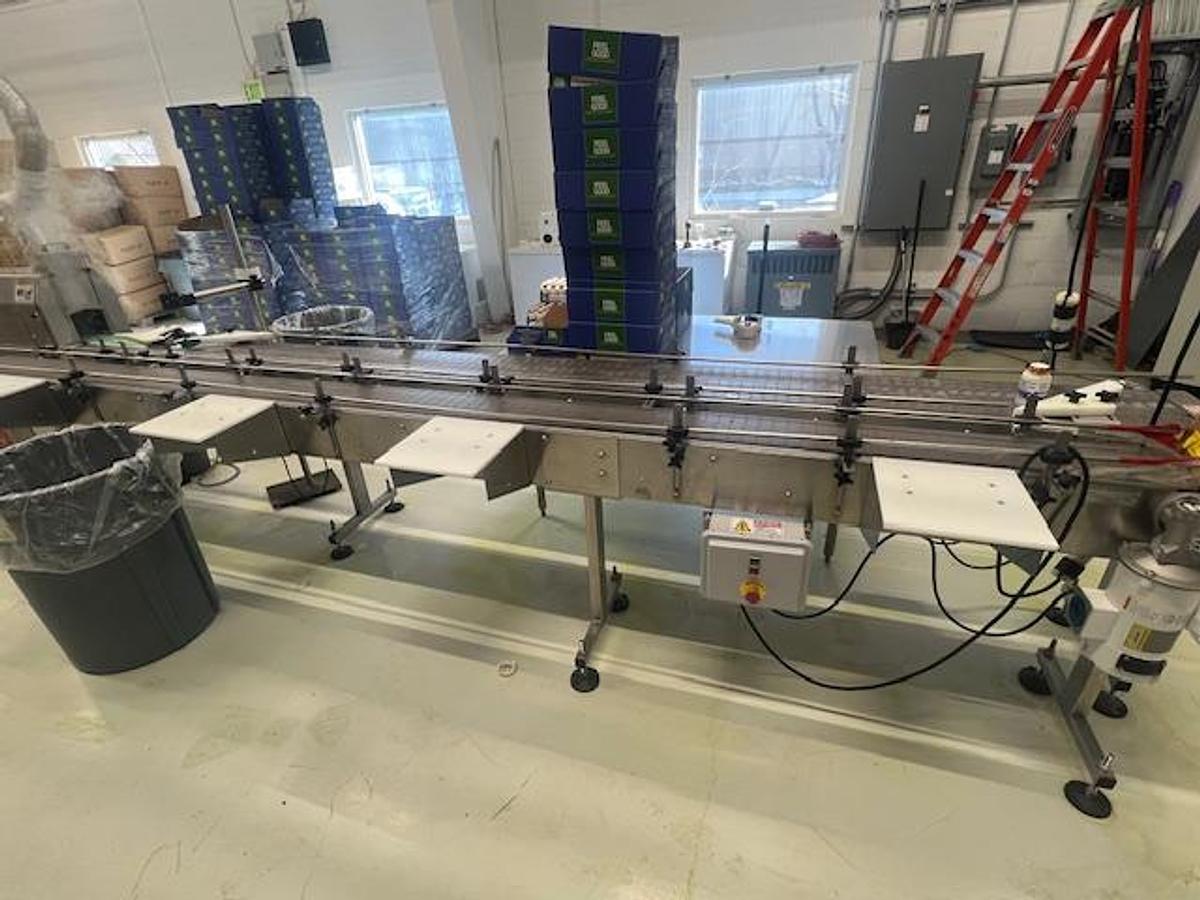

8.    IN-LINE FILLING SYSTEMS CONVEYOR

The line is currently set up to run 2 oz shot bottles like a 5hr energy bottle at 150-180 BPM. The capper and unscrambler are fully adjustable and should be able to accommodate at least up to a 12 oz bottle. The only change parts you would need for the filler is a new timing screw and the sleever would need a new timing screw and mandrel. Fairly inexpensive parts that can be purchased from the manufacturer.

Stem Tunnel electrical requirements:

480VAC/3PH/50A

Auto sleever requirements:

For the tank/batching system you will need the following power requirements:

There are also 2 motors (transfer pump motor and agitation motor) that will require 240V power.
