4 Lane stick pack machine

Unit is new still in the crate, unit was opened and tested not used!

Comes with the following:

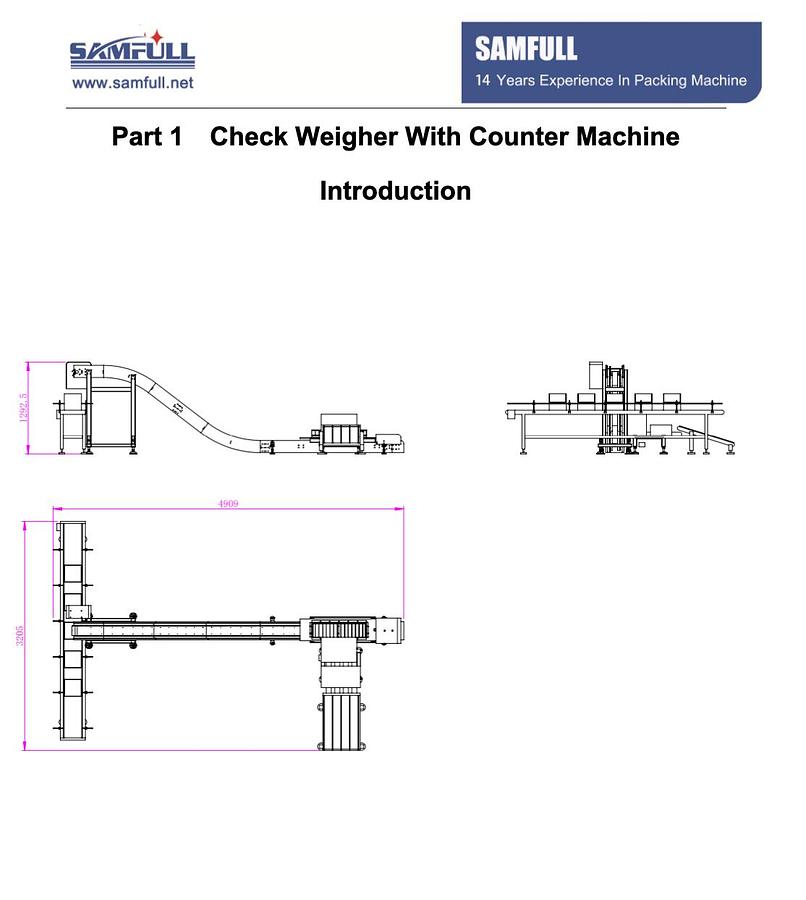

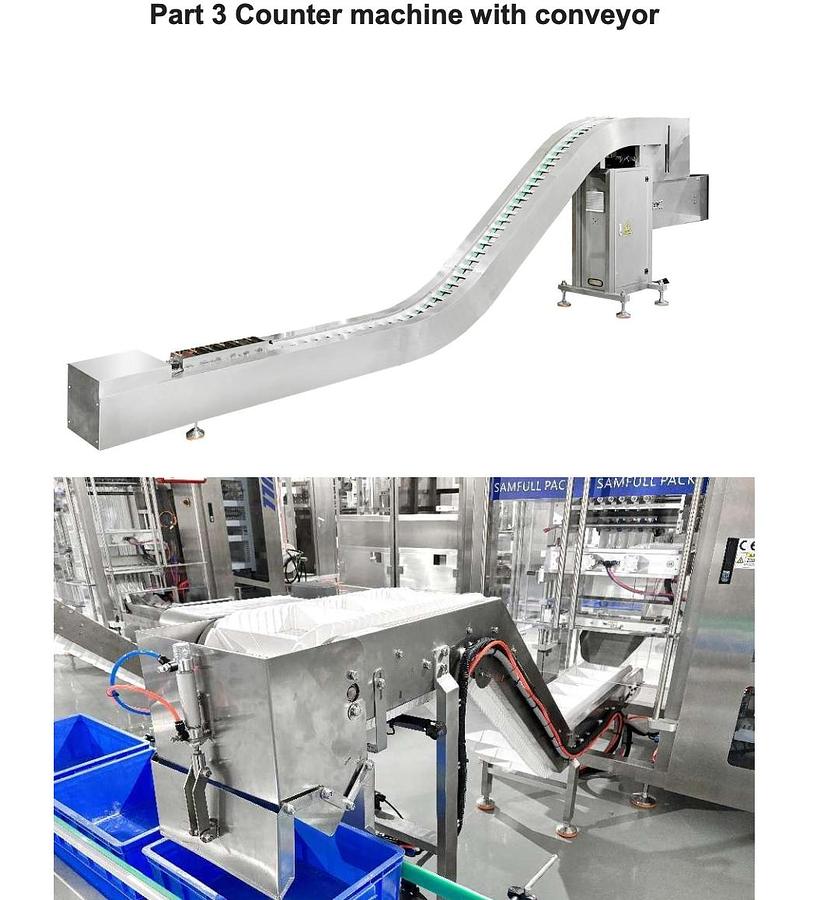

Full system 4 lane stick pack weigher with conveyor, belt conveyor, final conveyor, Connect counter machine with conveyor, vacuum machine, filter, horizontal sealing set, cutter.

Model SF-2.0S-4

Lane number 4 lanes

Packed item Powder

Capacity About 30-35bags/min/lane,

total 120-140 sticks/minute for 4 lanes

Measuring method Auger by servo motor

Measuring range 6g13g and 18g /stick

Bags size Length: 50--150 mm Width: 35 mm

Film width 320mm

Film thickness 0.04--0.10mm

Sealing type back sealing bag

Cutting type Flat cutting with easy tear

Film material Laminated film, like PET/PE, OPP/PE, NY/PE. etc.

Printer type Ribbon stamp printer or Hot stamping date coder

(please noted before order)

Air consumption 0.8Mpa 0.6m3/min

Power source 1N+PE/60HZ/A

Part 4 Separate vacuum machine

Machine component list:

1. Vacuum pump

2. Filter

3. Vacuum hopper (304 stainless steel)

4. Compressed air backflush system

5. Pneumatic discharge door system

6. Control system

7. Suction hose

8. Adjustable suction gun

The Sams Fill SF-2.0S-4 is a reliable four-lane stick pack machine designed for efficient packaging operations. This used equipment is well-suited for industries requiring precise and quick packaging solutions. It can handle various products, whether in powder, granulated, or liquid form, ensuring flexibility for diverse production needs. This model boasts easy-to-use settings and controls, allowing operators to customize the packaging process according to product specifications and desired output. Despite its compact footprint, the SF-2.0S-4 can achieve impressive packaging speeds, optimizing productivity without sacrificing quality. With its robust construction, the machine promises durability, making it a valuable asset for any production line looking to enhance its packaging efficiency and maintain consistent output rates. The SF-2.0S-4 is an ideal choice for those seeking cost-effective and dependable packaging equipment.
