New LID 40 Capsule Filler

The LID-40 Capsule Filler by LID is a new and advanced model designed for efficient capsule production. This machine is ideal for pharmaceutical and nutraceutical industries seeking to streamline their production process. The LID-40 is engineered for precision and reliability, ensuring consistent fill weights and reducing the risk of cross-contamination. This capsule filler accommodates various capsule sizes, making it versatile for different product lines. With a focus on user-friendly operation, it features an intuitive control panel that simplifies the setup and changeover processes, enhancing productivity. Safety considerations have been integrated into its design, adhering to industry standards. Built with durable materials, the LID-40 promises longevity and minimal maintenance needs, contributing to lower operational costs over time. Its new condition guarantees top performance and the latest technology benefits, making it a valuable investment for any facility looking to enhance their production capabilities.

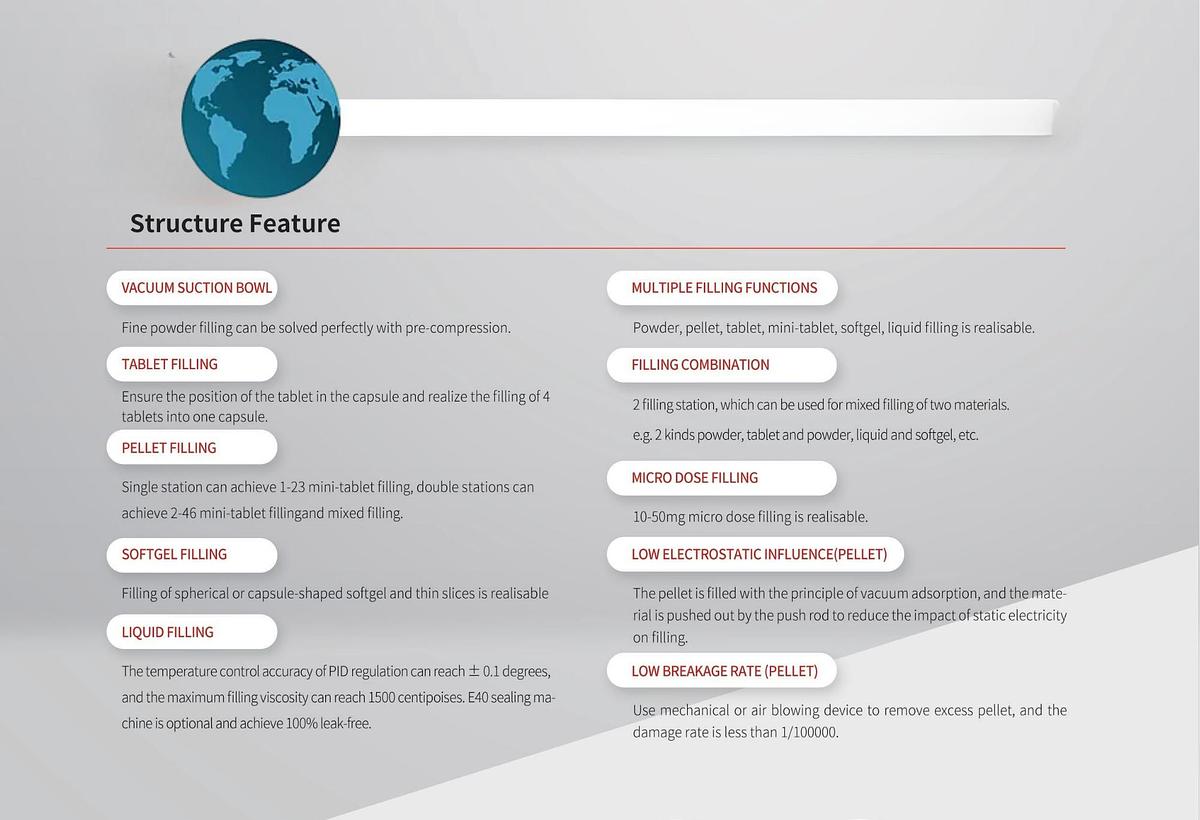

VACUUM SUCTION BOWL

Fine powder filling can be solved perfectly with pre-compression.

TABLET FILLING

Ensure the position of the tablet in the capsule and realize the filling of 4 tablets into one capsule.

PELLET FILLING

Single station can achieve 1-23 mini-tablet filling, double stations can achieve 2-46 mini-tablet fillingand mixed filling.

SOFTGEL FILLING

Filling of spherical or capsule-shaped softgel and thin slices is realisable

LIQUID FILLING

The temperature control accuracy of PID regulation can reach ‡ 0.1 degrees, and the maximum filling viscosity can reach 1500 centipoises. E40 sealing machine is optional and achieve 100% leak-free.

MULTIPLE FILLING FUNCTIONS

Powder, pellet, tablet, mini-tablet, softgel, liquid filling is realisable.

FILLING COMBINATION

2 filling station, which can be used for mixed filling of two materials. e.g. 2 kinds powder, tablet and powder, liquid and softgel, etc.

MICRO DOSE FILLING

10-50mg micro dose filling is realisable.

LOW ELECTROSTATIC INFLUENCE(PELLET)

The pellet is filled with the principle of vacuum adsorption, and the material is pushed out by the push rod to reduce the impact of static electricity on filling.

LOW BREAKAGE RATE (PELLET)

Use mechanical or air blowing device to remove excess pellet, and the damage rate is less than

1/100000

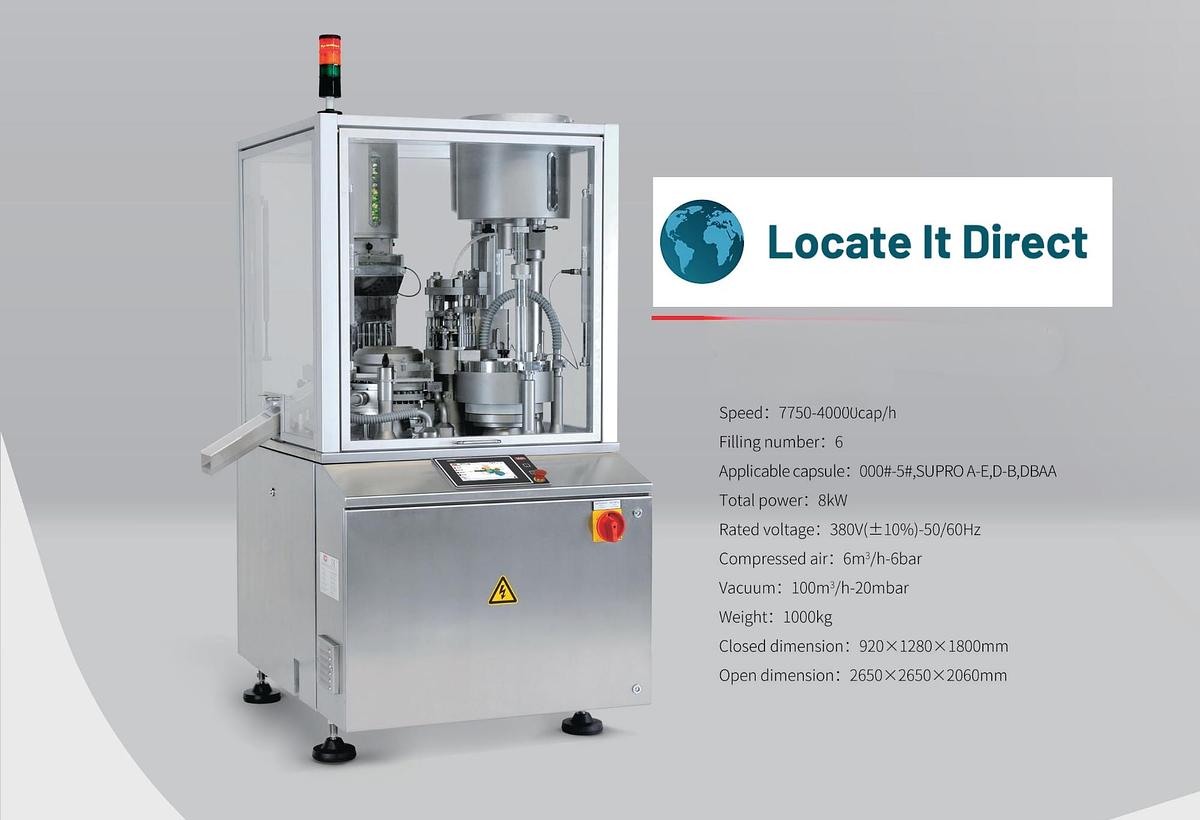

Speed: 7750-4000Ucap/h

Filling number: 6

Applicable capsule: 000#-5#,SUPRO A-E,D-B,DBAA

Total power: 8kW

Rated voltage: 380V(10%)-50/60Hz

Compressed air: 6m /h-6bar

Vacuum: 100m%/h-20mbar

Weight: 1000kg

Closed dimension: 920X1280 1800mm

Open dimension: 2650x2650 x 2060
